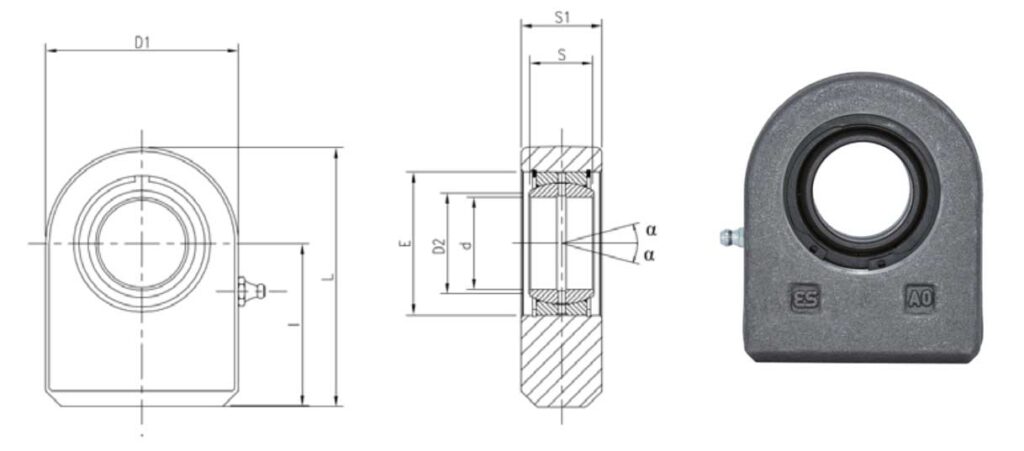

| Art.nr | d | S | I | D1 | D2 | S1 | L |
|---|---|---|---|---|---|---|---|
| S 20 N | 20 | 16 | 38 | 50 | 24,1 | 19 | 63 |
| S 25 N | 25 | 20 | 45 | 55 | 29,3 | 23 | 72,5 |
| S 30 N | 30 | 22 | 51 | 65 | 34,2 | 28 | 83,5 |
| S 35 N | 35 | 25 | 61 | 83 | 39,7 | 30 | 102,5 |
| S 40 N | 40 | 28 | 69 | 100 | 45 | 35 | 119 |
| S 45 N | 45 | 32 | 77 | 110 | 50,7 | 40 | 132 |
| S 50 N | 50 | 35 | 88 | 123 | 56 | 40 | 149,5 |
| S 60 N | 60 | 44 | 100 | 140 | 66,8 | 50 | 170 |
| S 70 N | 70 | 49 | 115 | 164 | 77,8 | 55 | 197 |
| S 80 N | 80 | 55 | 141 | 180 | 89,4 | 60 | 231 |
| S 90 N | 90 | 60 | 150 | 226 | 98,1 | 65 | 263 |
| S 100 N | 100 | 70 | 170 | 250 | 109,5 | 70 | 295 |
| S 110 N | 110 | 70 | 185 | 295 | 121,2 | 80 | 332,5 |
| S 120 N | 120 | 85 | 210 | 360 | 135,5 | 90 | 390 |
| Art.nr | Tolerans
d mm
S mm
|
Radialspel mm | Max stat. belastning KN | Max dyn. belastning KN | a° | Vikt Kg | |
|---|---|---|---|---|---|---|---|
| S 20 N | 0÷-0.010 | 0÷-0.12 | 0.030÷0.082 | 67 | 30 | 9 | 0,325 |
| S 25 N | 0÷0.010 | 0÷-0.12 | 0.037÷0.100 | 69,5 | 48 | 7 | 0,500 |
| S 30 N | 0÷0.010 | 0÷-0.12 | 0.037÷0.100 | 118 | 62 | 6 | 0,825 |
| S 35 N | 0÷0.012 | 0÷-0.12 | 0.037÷0.100 | 196 | 80 | 6 | 1,475 |
| S 40 N | 0÷0.0012 | 0÷-0.12 | 0.043÷0.120 | 300 | 100 | 7 | 2,480 |
| S 45 N | 0÷0.0012 | 0÷-0.12 | 0.043÷0.120 | 380 | 127 | 7 | 3,450 |
| S 50 N | 0÷0.0012 | 0÷-0.12 | 0.043÷0.120 | 440 | 156 | 6 | 4,450 |
| S 60 N | 0÷0.0015 | 0÷-0.15 | 0.043÷0.120 | 570 | 245 | 6 | 7,130 |
| S 70 N | 0÷0.0015 | 0÷-0.15 | 0.055÷0.142 | 695 | 315 | 6 | 10,700 |
| S 80 N | 0÷0.015 | 0÷-0.15 | 0.055÷0.142 | 780 | 400 | 6 | 15,100 |
| S 90 N | 0÷0.020 | 0÷-0.20 | 0.055÷0.142 | 1340 | 490 | 5 | 23,400 |
| S 100 N | 0÷0.020 | 0÷-0.20 | 0.065÷0.165 | 1500 | 610 | 7 | 33,100 |
| S 110 N | 0÷0.020 | 0÷-0.20 | 0.065÷0.165 | 2160 | 655 | 6 | 48,500 |
| S 120 N | 0÷0.020 | 0÷-0.20 | 0.065÷0.165 | 3250 | 950 | 6 | 79,500 |
