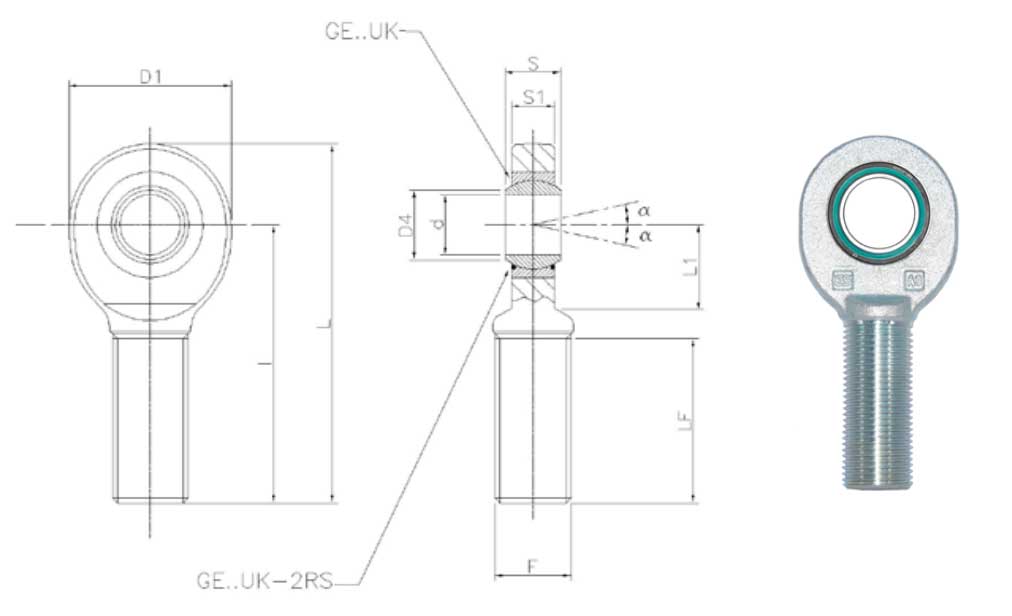

| Art.nr* | d | l | S | LF | D1 | D4 | S1 | L | L1 | F |
|---|---|---|---|---|---|---|---|---|---|---|
| FE 6U | 6 | 36 | 6 | 18 | 21 | 8 | 4.4 | 46.5 | 12 | M6x1 |
| FE 8U | 8 | 42 | 8 | 22 | 24 | 10.2 | 6 | 54 | 14 | M8x1,25 |
| FE 10U | 10 | 48 | 9 | 27 | 29 | 13.2 | 7 | 62.5 | 15 | M10x1.5 |
| FE 12U | 12 | 54 | 10 | 30 | 34 | 15 | 8 | 71 | 18 | M12x1.75 |
| FE 15U | 15 | 63 | 12 | 34 | 40 | 18.4 | 10 | 83 | 20 | M14x2 |
| FE 17U | 17 | 69 | 14 | 36 | 46 | 20.7 | 11 | 92 | 23 | M16x2 |
| FE 20U | 20 | 78 | 16 | 43 | 53 | 24.1 | 13 | 104.5 | 27 | M20x1.5 |
| FE 25U | 25 | 94 | 20 | 53 | 64 | 29.3 | 17 | 126 | 33 | M24x2 |
| FE 30U | 30 | 110 | 22 | 65 | 73 | 34.2 | 19 | 146.5 | 37 | M30x2 |
| FE 35U-2RS | 35 | 140 | 25 | 82 | 82 | 39.7 | 21 | 181 | 42 | M36x3 |
| FE 40U-2RS | 40 | 150 | 28 | 86 | 92 | 45 | 23 | 196 | 48 | M39x3 |
| FE 45U-2RS | 45 | 163 | 32 | 94 | 102 | 50.7 | 27 | 214 | 52 | M42x3 |
| FE 50U-2RS | 50 | 185 | 35 | 106 | 112 | 56 | 30 | 241 | 60 | M45x3 |
| FE 60U-2RS | 60 | 210 | 44 | 115 | 135 | 66.8 | 38 | 277.5 | 75 | M52x3 |
| FE 70U-2RS | 70 | 235 | 49 | 125 | 160 | 77.8 | 42 | 315 | 87 | M56x4 |
| FE 80U-2RS | 80 | 270 | 55 | 140 | 180 | 89.4 | 47 | 360 | 100 | M64x4 |
| UPGRADED VERSION | ||||||||||
| FEM 40U-2RS | 40 | 150 | 28 | 86 | 92 | 45 | 23 | 196 | 48 | M42x3 |
| FEM 45U-2RS | 45 | 163 | 32 | 94 | 102 | 50.7 | 27 | 214 | 52 | M45x3 |
| FEM 50U-2RS | 50 | 185 | 35 | 106 | 112 | 56 | 30 | 241 | 60 | M52x3 |
| FEM 60U-2RS | 60 | 210 | 44 | 115 | 135 | 66.8 | 38 | 277.5 | 75 | M60x4 |
| FEM 70U-2RS | 70 | 235 | 49 | 125 | 160 | 77.8 | 42 | 315 | 87 | M72x4 |
| FEM 80U-2RS | 80 | 270 | 55 | 140 | 180 | 89.4 | 47 | 360 | 100 | M80x4 |
| Art.nr* | Tolerance d mm S mm | Radial gap mm | Max static load KN | Max dynamic load KN | a° | Weight Kg | |
|---|---|---|---|---|---|---|---|
| FE 6U | 0÷0.008 | 0÷-0.12 | 0÷0.032 | 8.1 | 3.5 | 13 | 0.017 |
| FE 8U | 0÷0.008 | 0÷-0.12 | 0÷0.032 | 12.9 | 5.8 | 15 | 0.030 |
| FE 10U | 0÷0.008 | 0÷-0.12 | 0÷0.032 | 17.6 | 8.6 | 12 | 0.050 |
| FE 12U | 0÷0.008 | 0÷-0.12 | 0÷0.032 | 24.5 | 11.4 | 11 | 0.086 |
| FE 15U | 0÷0.008 | 0÷-0.12 | 0÷0.040 | 36 | 17.6 | 8 | 0.140 |
| FE 17U | 0÷0.008 | 0÷-0.12 | 0÷0.040 | 45 | 22.4 | 10 | 0.190 |
| FE 20U | 0÷0.010 | 0÷-0.12 | 0÷0.040 | 60 | 31.5 | 9 | 0.310 |
| FE 25U | 0÷0.010 | 0÷-0.12 | 0÷0.050 | 83 | 51 | 7 | 0.560 |
| FE 30U | 0÷0.010 | 0÷-0.12 | 0÷0.050 | 110 | 65.5 | 6 | 0.890 |
| FE 35U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.050 | 146 | 112 | 6 | 1.4 |
| FE 40U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 180 | 140 | 7 | 1.8 |
| FE 45U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 240 | 180 | 7 | 2.6 |
| FE 50U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 290 | 220 | 6 | 3.4 |
| FE 60U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.060 | 450 | 345 | 6 | 5.9 |
| FE 70U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.072 | 610 | 440 | 6 | 8.2 |
| FE 80U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.072 | 750 | 570 | 6 | 12.0 |
| UPGRADED VERSION | |||||||
| FEM 40U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 180 | 140 | 7 | 1.85 |
| FEM 45U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 240 | 180 | 7 | 2.66 |
| FEM 50U-2RS | 0÷0.012 | 0÷-0.12 | 0÷0.060 | 290 | 220 | 6 | 3.5 |
| FEM 60U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.060 | 450 | 345 | 6 | 6.02 |
| FEM 70U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.072 | 610 | 440 | 6 | 8.38 |
| FEM 80U-2RS | 0÷0.015 | 0÷-0.15 | 0÷0.072 | 750 | 570 | 6 | 12.5 |
* Also available with left thread (Code: FEL…/FEML…)
